Ana Welder

MMA-PRO 180A

MMA-PRO 180A

Regular price Rp2.500.000
Regular price Rp3.160.000 Sale price Rp2.500.000
Sale Sold out
Shipping calculated at checkout.
View full details

Product Description

Overview

ANA WELDER MINI MMA Series

Distinguishing highlights from current market machines:

  1. Unique patented plastic casing for the exterior design.

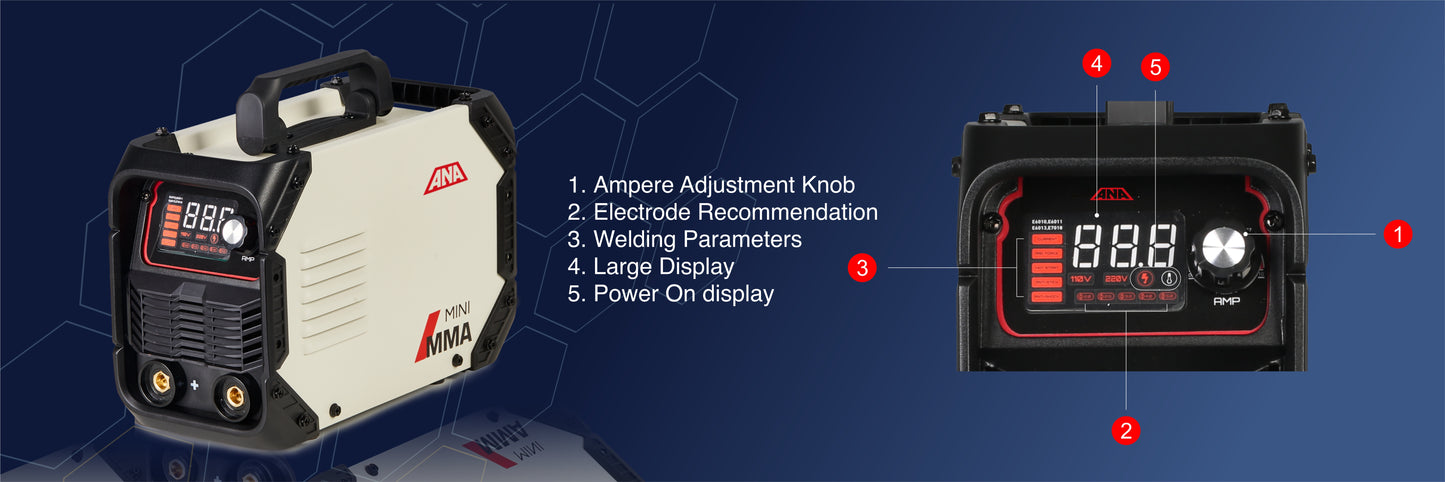

  2. The digital display screen features concealed functions, all displayed in a left-aligned column. Additionally, it automatically assists in matching electrode diameter based on the current, preventing users from overloading the machine.
  3. Included in the accessories is a complimentary supply of consumables (welding rods), enabling users to start using the machine immediately upon receipt without the need to purchase additional welding rods.

Specifications

  • Model: MMA-180A
  • Function: MMA/ARC FORCE/HOT START/ANTI-STICK/ANTI-SHOCK
  • Intelligent Chip: IGBT Inverter
  • Output Flow Type: DC
  • Voltage Input: 220V
  • Frequency: 50-60HZ
  • Rated Voltage: 180V-240V
  • Output Current: 28A
  • Output Voltage: 27.2V
  • Duty Cycle: 60%-180A/100%-139A at 40°C
  • Efficiency: 85%
  • No-load Voltage: 60V
  • Current Range: 20-180A
  • Electrode Diameter: 1.6-4.0mm
  • Continuous Electrode Operation: Stable welding with 10 or more pieces of 4.0mm electrodes, continuous welding with 10 pieces of 5.0mm electrodes
  • Insulation Class: F
  • Protection Class: IP21
  • Dimensions: 35.516.528cm
  • Net Weight: 7kg
  • Gross Weight: 8kg

Warranty Information

6 Months Spare Parts Warranty / 1 Year Service Warranty
